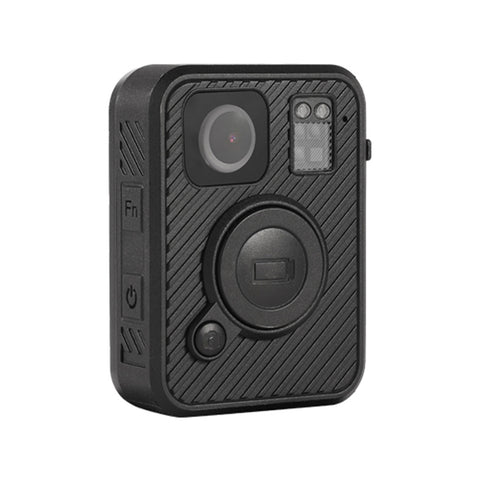

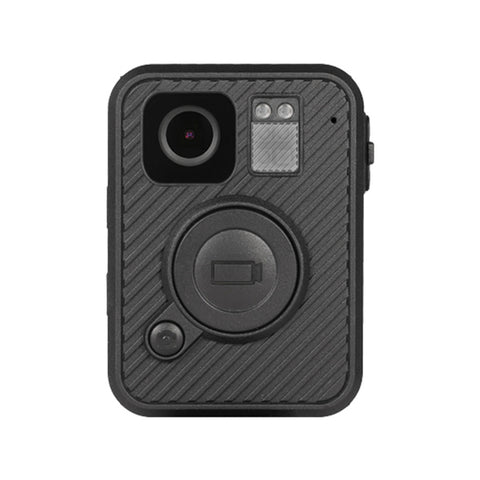

Overwatch® EH150 V3 Body Worn Camera
Overwatch® EH150 V3 Body Worn Camera
Overview
The EH150 is our most versatile body camera and is the perfect solution for any officer requiring a professional unit. It offers 64GB of internal storage which can hold numerous hours’ worth of footage and a long battery life of up to 11.5 hours on a single charge.
The unit is simple to operate with the choice to activate advanced features through the onboard settings such as pre-record options and loop recording, among many others.
With a wide 140° lens and high-quality HD video, you can be sure that everything in front of the camera is captured and nothing is missed. Furthermore, each video will be watermarked with time and date stamps, and you can take crystal clear snapshots simultaneously during your recording.
The toughened ABS plastic shell survives 2-3-meter drop tests and works well in harsh conditions such as heavy rain, dust, or extreme temperatures, with an IP66 waterproof rating.
There are no subscription or ongoing fees whatsoever, and an EMS is not required. You can use the body camera straight out of the box without the hassle of installing any programs.
Key Features:
- 64GB Built-In Memory (anti-tamper)
- HD Video (1512P / 1296P / 1080P / 720P / 480P)
- Durable & Reliable (IP66 waterproof rating)
- Auto Night Vision (with up to 10m of visible face detection)
- 6 - 11.5hr Battery Recording Time (based on selected recording resolution)
- Encryption/Password Protection (prevents evidence tampering)
- Easy Charging via the Included Docking Station
- Audio Recording (with or without video)
- Wide-Angled 140° lens which captures much more compared to traditional cameras
- 40 Mega Pixel Snapshots (can be taken in standby mode or during recording)
- GPS Functionality (track where the video was recorded)
- H.265 high-profile compression, allowing for 50% storage savings
- Loop Recording (loop over the oldest footage)
- 2.5” LCD Screen (change settings & playback footage on the spot)
- Event Button (automatically stores important clips in a separate folder)
- Up to 32X digital zoom feature (for recording events in the distance)
- External Camera Support: Allows the use of an external mini camera (720P, sold separately)
Standard Accessories (In The Box): USB cable, wall charger, user manual, 360° crocodile clip, dock station, and an epaulet (shoulder) clip.
*This camera is well suited for law enforcement, security personnel, and council operations due to its advanced security and design features. For bulk charging and data transfer, we also offer 8-Port docking stations and a free EMS.
Specifications
| Chipset | Ambarella H22 |
| Memory | 64GB Built-in (Anti Tamper) |
| Video Resolution |
1512P / 1296P / 1080P / 720P/ 480P (30 FPS) |
| Video Format | H.264/ H.265 MPEG4 |
| Watermark/Stamps | Built-in time and date stamps are fixed on every video. Coordinates can also be stamped if you enable GPS, as well as the unit ID or your officer number. |
| Playback/Rewind Speed | 2X, 4X, 8X, 16X, 32X, 64X |
| Audio Recording | Yes (audio with video, or audio only) |
| Audio Format | AAC2 / MP3 |
| Snapshots |
Yes, JPEG (5M/20M/25M/30M/40M megapixel). Burst mode is also available (2/3/5/10/20). |
| Battery Life |
3.7v Built-In 3100mAh Li-ion. Continuous recording time ( when the battery is fully charged and IR is off): |
| Recording Time |
H.264 (approx): 16 hours (resolution 1920x1080P 30fps) 28 hours (resolution 1280x720P 30fps) 34 hours (resolution 848x480P 30fps) H.265 (approx): 28 hours (resolution 1920x1080P 30fps) 42 hours (resolution 1280x720P 30fps) 68 hours (resolution 848x480P 30fps) |
| LCD Screen | 2 inches TFT-LCD Color Display |
| Connectivity | USB 2.0 (data download & charging) |
| Lens | Wide Angle 140 degrees |
| Casing | Toughened ABS plastic with an IP66 weatherproof rating |
| Charging Time | 4 hours |
| Pre-recording Function | 30 Seconds |
| Dimensions | 94mm *60 mm *31mm |
| Weight | 178g |
| Other Features | Record Warning, Record Indicator, One-Touch Record From Off State, Important File Tagging, Custom Camera ID, Flashlight, RED Blinking REC Indicator |
Comparison
 EH300
|
|||
|
COMPRESSION |
H.264/H.265 |
H.264/H.265 |
H.264/H.265 |
|
BATTERY LIFE |
3200mAh |
3000mAh |
1900mAh |
|
STORAGE CAPACITY |
64GB |
64GB |
64GB |
| VIDEO RESOLUTION | 1512P / 1440P / 1296P/ 1080P (default) /720P /480P | 1512P / 1440P/ 1296P/ 1080P (default) /720P /480P | 1440P/ 1296P/ 1080P (default) /720P /480P |
| FIELD OF VIEW | 140° | 140° | 140° |
|
EXTERNAL CAMERA SUPPORT |
Yes (720P) |
No |
No |
|
BUILT-IN SCREEN *Allows for on-the-spot video playback and settings changes. |
Yes | Yes |
No |
|
SOFTWARE REQUIRED? *If yes, it's included for free |
No | No | Yes |
|
WEIGHT |
178g |
136g |
81g |
|
DIMENSIONS |
94* 60* 31mm |
77* 56* 30mm |
63* 50*16mm |
| GPS LOGGING | Yes | No |
No |
| NIGHT VISION (IR) | Yes (Auto/Manual) | Yes (Auto/Manual) | No |
