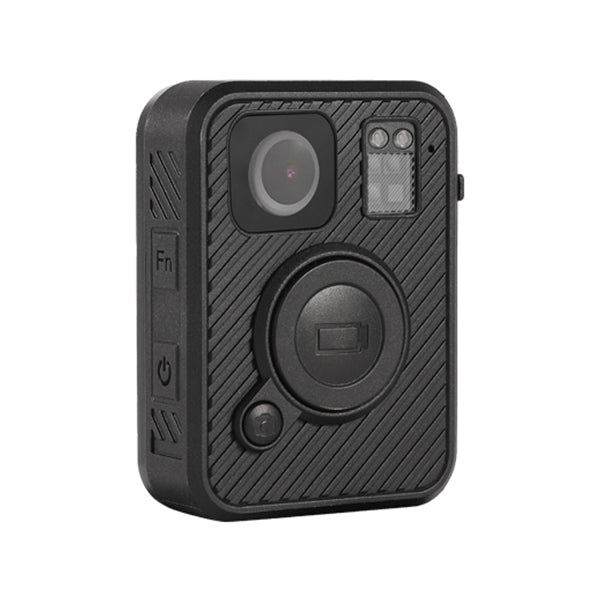

Overwatch® EH220 Body Worn Camera
Pairs well with
Overview

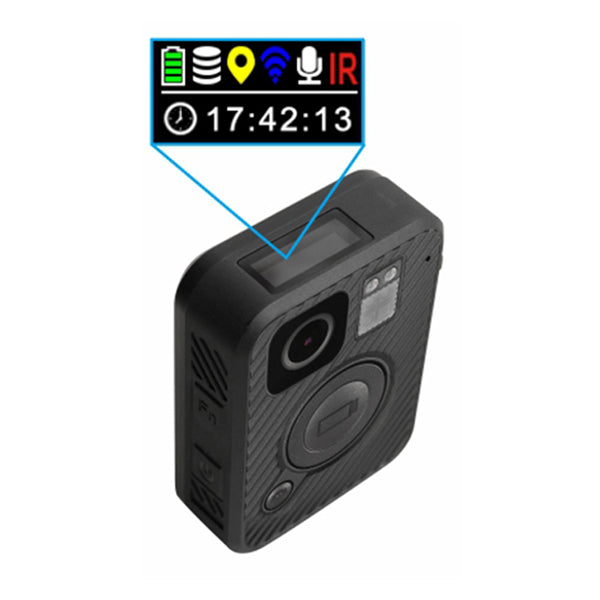

The EH220 is a small and light body camera with a minimalist design and a large one-touch record button on the front of the camera. When the user looks down, they will also view an LCD strip that is positioned on the top of the body camera and displays key information such as battery life, storage, recording status, and more.

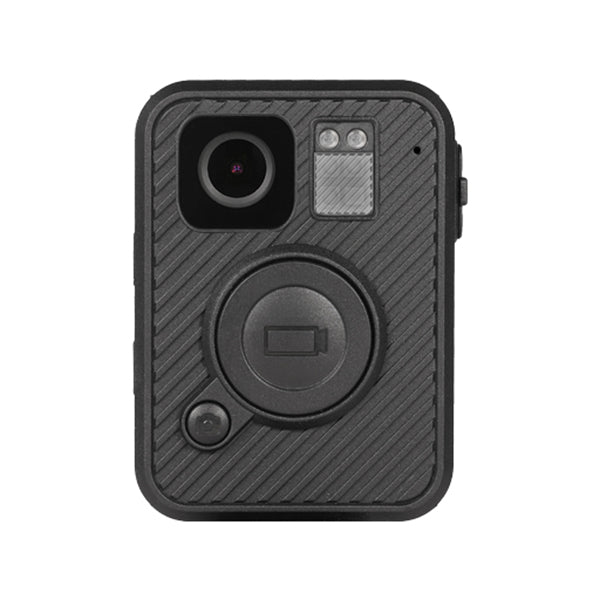

The EH220 is user friendly with one large recording button on the front face of the unit, and a smaller snapshot button next to it. The simple one-press operation is an advantage and when matched with a 30 second pre-record feature, it allows you to capture rapid incidents and events before they occur.
While the body camera encompasses a simplistic design, it also includes advanced features such as 1440P resolution at 140° (default 1080P), file protection limits, long battery life, auto night vision detection, and more.
Key Features:
- 140° wide field-of-view
- Convenient Top LCD Screen (displays key information)
- 64GB Built-In Memory (anti-tamper)
- Long Battery Life: 11 hours @ 720P
- HD Video (1440P / 1296P / 1080P / 720P / 480P)
- Durable & Reliable (IP65 waterproof rating)
- Night vision with in-built high-intensity infrared illuminators
- H.265 high-profile compression, allowing for 50% storage savings
- 30/60s Pre/Post-Recording
- Encryption/Password Protection (prevents evidence tampering)
- GPS Functionality (track where the video was recorded)
- WiFi allows for live streaming from the app (limited to an 8m radius)
- Very Lightweight at Only 135g
Standard Accessories (In The Box): USB cable, wall charger, user manual, 360° crocodile clip, dock station, and an epaulet (shoulder) clip.
*Compatible with Windows only
Specifications
| Memory | 64GB Built-in (Anti Tamper) |
| Chipset | Ambarella H22 |
| Screen | Small back-lit LCD display on the top |
| Video Resolution | 1440P / 1296P / 1080P / 720P/ 480P (30 FPS) |
| Battery Life |
12.5 hours @480P (battery fully charged & IR off) 11 hours @720P (battery fully charged & IR off) 9 hours @1080P (battery fully charged & IR off) |
| Watermark/Stamps | Built-in time and date stamps are fixed on every video. Coordinates can also be stamped if you enable GPS, as well as the unit ID or your officer number. |
| Video Format | H.264/ H.265 MPEG4 |
| Photo Format | 4608*3456 JPEG |
| Audio Format | WAV |
| Battery Capacity | Built-in 2800mAh Lithium |
| Charging Time | 4-6 hours |
| Lens |
Wide Angle 140 degrees |
| Pre/Post-Recording | 30/60 seconds |
| Recording Time |
H.264: (approx) |
| Water Mark | User ID, time and date stamp & GPS coordinates embedded into video. |
| Password Protection | Without entering the password on the camera or via software, the user cannot gain access to the cameras storage & setting. |
| Waterproof Rating | IP65 |
| Snapshot | Capture photos during video recording |
| Activation Prompt | Audible, visual, and vibration to indicate recording start and stop. |
| Video Transfer | USB 2.0 |
| Weight |
135g |
| Dimensions | 77mm * 56 mm *22mm |
Comparison
| *Click here to view our full comparison table |  EH250 |
||
|
COMPRESSION |
H.264 |
H.264/H.265 |
H.264/H.265 |
|
BATTERY LIFE |
8 - 12.5hrs |
H.264: 11 - 14hrs |
H.264: 11 - 15hrs |
|
RECORDING TIME |
H.264: 12 - 34hrs |
H.264: 12 - 34hrs |
H.264: 12 - 34hrs |
| RECORDING RESOLUTION | 1296P/ 1080P (default) /720P /480P | 1440P/ 1296P/ 1080P (default) /720P /480P | 1440P/ 1296P/ 1080P (default) /720P /480P |
| FIELD OF VIEW | 140° | 140° | 140° |
|
EXTERNAL CAMERA SUPPORT |
Yes (480P) |
No |
Yes (720P) |
|
BUILT-IN SCREEN *Allows for on-the-spot video playback and settings changes. |
Yes | Backlit top viewing screen only | Yes |
|
WEIGHT |
165g |
135g |
155g |
|
DIMENSIONS |
94* 60* 31mm |
77* 56* 22mm |
77* 55*30mm |
| GPS LOGGING | Yes | Yes |
Yes |
